Products

Our Products

We Provide Best Manhole Covers

Ductile Iron

Cast Iron

Aluminium

Stainless Steel

Product Selection

● Loading Strength 15 KN
● Pedestrain Area

● Loading Strength 400 KN
● Carriageways, Hard Shoulders and Parking Areas.

● Loading Strength 125 KN
● Footways, Pedestrain Areas and Car Parks.

● Loading Strength 600 KN
● High Wheel Load Areas, Docks and Aircraft Pavement

● Loading Strength 250 KN
● Kerbside Panels of Roads and Cars Parks.

● Loading Strength 900 KN
● Very High Wheel Load Areas- Aircraft Pavements.

• Ductile Iron Gr 500/7 ISO 1083
• Epoxy Coating can be done provided on request
• Special Badging can be provided on request
• Lockable / theft proof versions may be available on request

• List is Standard sizes. We have many more sizes available
• GRP Sealing plate provision provided in Max. products
• Available load capacity as per design and requirement

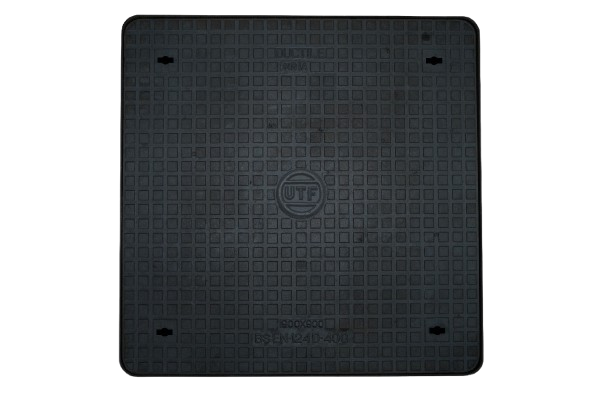

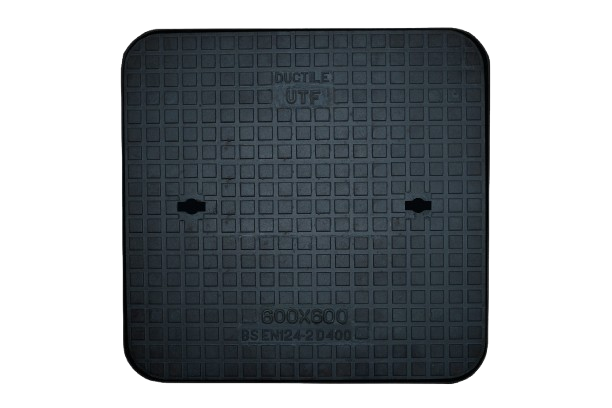

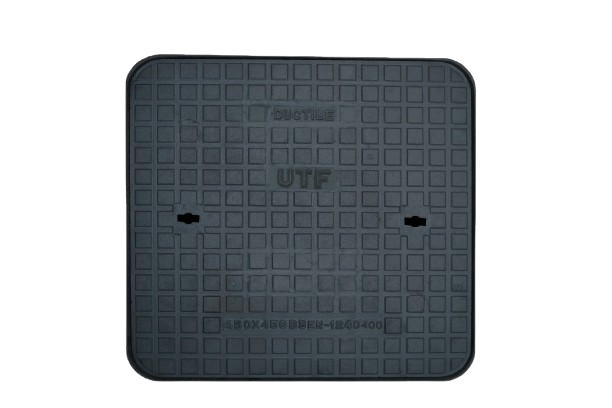

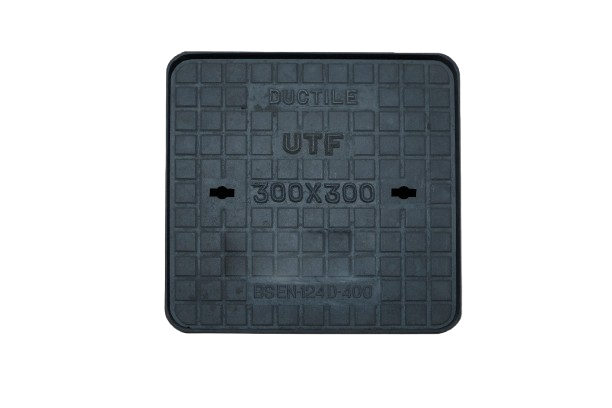

Clear Opening Size (mm)	Weight in Kgs	Class
300×300	7	C
300×300	13	C
300×300	28	B
300×300	38	A
450×450	28	C
450×450	45	B
600×450	23	C
600×600	30	C
600×600	50	C
600×600	70	C
600×600	90	B
600×600	110	B
600×600	160	A
600×600	180	A
600×600	200	A+
600×600	220	A+
800×800	100	C
800×800	130	B
800×800	190	A
900×900	120	C
900×900	160	B
900×900	190	A

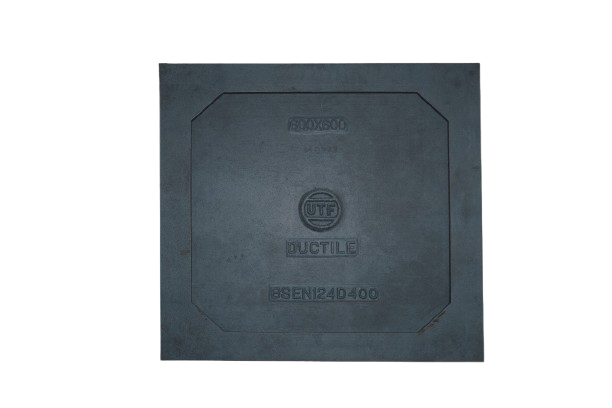

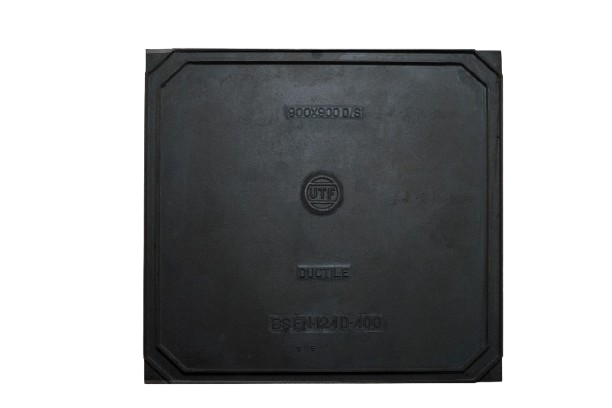

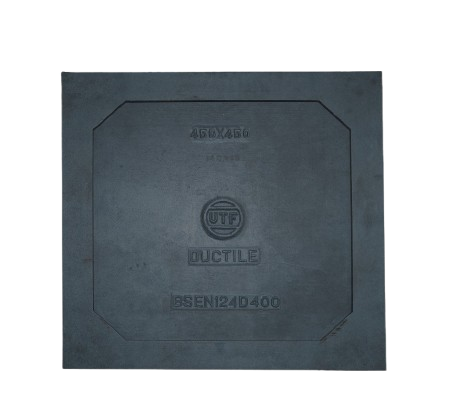

Recessed Top Interlock Manholes (Cover – 70mm Depth)

Clear Opening Size	Weight in Kgs	Class
300×300	25	C
300×300	30	B
450×450	52	B
600×600	70	C
600×600	80	B
600×600	90	B
600×600	135	A

Recessed Top Tile Insert (40mm Recess Depth)

Clear Opening Size	Weight in Kgs	Class
300×300	28	B
450×450	45	B
600×600	70	B

Please Contact Us Here for More Information on This
